2MHz Synchronous LT8390AHUFD 4 Switch Buck Boost Controller QFN28 60V IC Chip
Product Description Of LT8390AHUFD
LT8390AHUFD is a synchronous 4-switch buck-boost DC/DC controller that regulates output voltage, input or output current from an input voltage above, below, or equal to the output voltage.
Specification Of LT8390AHUFD
| Part Number | LT8390AHUFD |
| Output Type | |
| Function | |
| Output Configuration | |
| Topology | |
| Number of Outputs | |
| Output Phases | |
| Voltage - Supply (Vcc/Vdd) | |
| Frequency - Switching | |
| Duty Cycle (Max) | |
| Synchronous Rectifier | |
| Clock Sync | |
| Control Features | Current Limit, Frequency Control, Soft Start |
| Operating Temperature | |
| Mounting Type | |
| Package / Case | |
| Supplier Device Package | |
Feature Of LT8390AHUFD
- 4-Switch Single Inductor Architecture Allows VIN Above, Below or Equal to VOUT
- Up to 95% Efficiency at 2MHz
- Proprietary Peak-Buck Peak-Boost Current Mode
- Wide VIN Range: 4V to 60V
- ±1.5% Output Voltage Accuracy: 1V ≤ VOUT ≤ 60V
- ±3% Input or Output Current Accuracy with Monitor
- Spread Spectrum Frequency Modulation for Low EMI
- High Side PMOS Load Switch Driver
- No Top MOSFET Refresh Noise in Buck or Boost
- Adjustable and Synchronizable: 600kHz to 2MHz
- VOUT Disconnected from VIN During Shutdown
- Available in 28-Lead TSSOP with Exposed Pad and 28-Lead QFN (4mm × 5mm)
Applications Of LT8390AHUFD
- Automotive, Industrial, Telecom Systems
- High Frequency Battery-Powered System

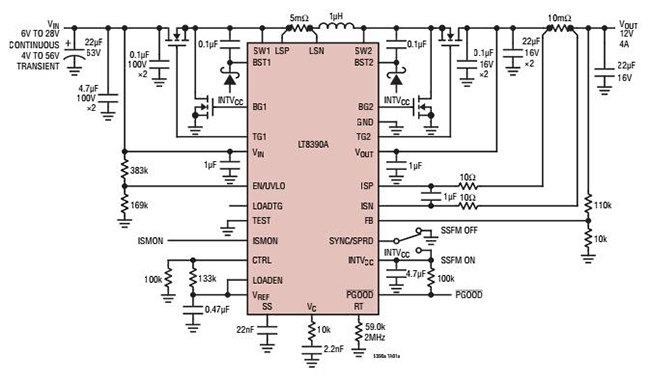

Typical Application Of LT8390AHUFD
